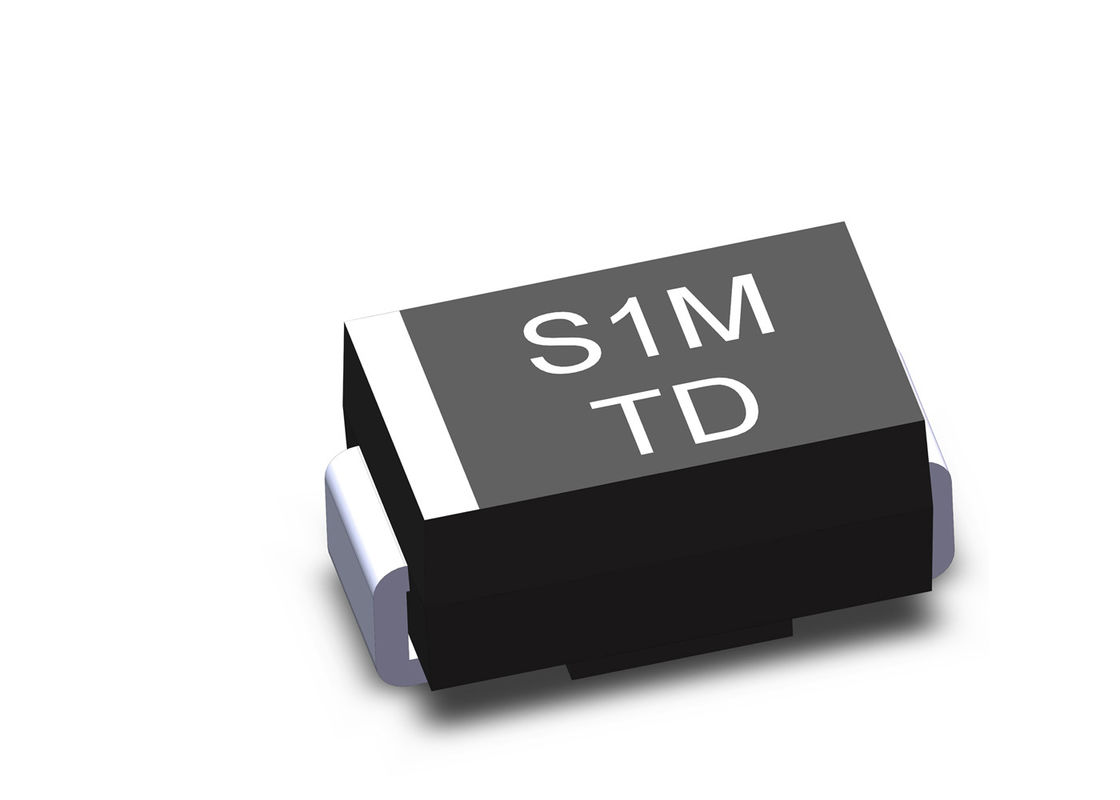

SMD Surface Mount Rectifier Diode 3 AMP 1000V S3M

Description
Product Name: SMD Standard Rectifier Diode Max. Forward Current: 1A
Max. Reverse Voltage: 1000V Max. Forward Voltage: 1.1V
Max. Reverse Current: 5μF Package: SMA
Packing: Tape & Reel (TR) Type: Rectifier Diode

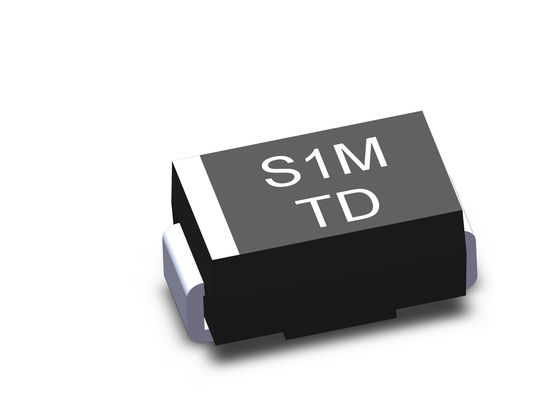

SMD Surface Mount Rectifier Diode 3 AMP 1000V S3M



Product Features



The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief, ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed: 260℃/10 seconds at terminals


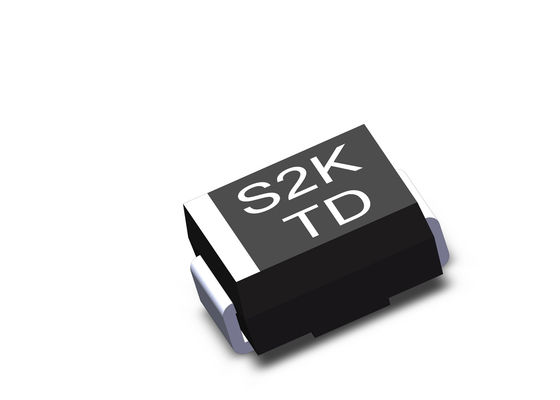

Mechanical Characteristics



Case: JEDEC SMA/DO-214AC molded plastic body
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.002 ounce, 0.07 grams


Absolute Maximum Ratings and Electrical Parameters



Type Io VRRM IFSM VF IR Package Outline
(A) (V) (A) (V) IF(A) (uA) VR(V)
S1A 1 50 30 1.1 1 5 50 SMA
S1B 1 100 30 1.1 1 5 100 SMA
S1D 1 200 30 1.1 1 5 200 SMA
S1G 1 400 30 1.1 1 5 400 SMA
S1J 1 600 30 1.1 1 5 600 SMA
S1K 1 800 30 1.1 1 5 800 SMA
S1M 1 1000 30 1.1 1 5 1000 SMA
S2A 2 50 50 1.1 2 5 50 SMB
S2B 2 100 50 1.1 2 5 100 SMB
S2D 2 200 50 1.1 2 5 200 SMB
S2G 2 400 50 1.1 2 5 400 SMB
S2J 2 600 50 1.1 2 5 600 SMB
S2K 2 800 50 1.1 2 5 800 SMB
S2M 2 1000 50 1.1 2 5 1000 SMB
S3A 3 50 100 1.1 3 10 50 SMC
S3B 3 100 100 1.1 3 10 100 SMC
S3D 3 200 100 1.1 3 10 200 SMC
S3G 3 400 100 1.1 3 10 400 SMC
S3J 3 600 100 1.1 3 10 600 SMC
S3K 3 800 100 1.1 3 10 800 SMC
S3M 3 1000 100 1.1 3 10 1000 SMC
