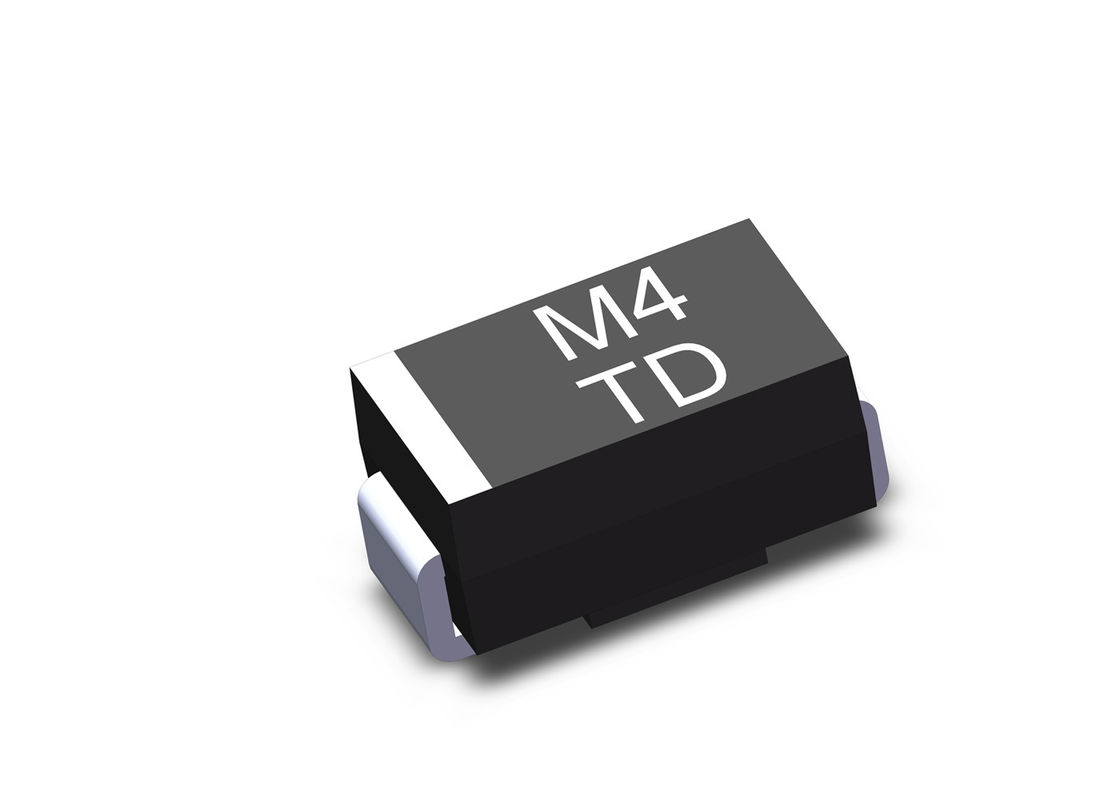

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package
1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package

Large Image :  1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package

Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: ROHS
Model Number: M4
Payment & Shipping Terms:
Minimum Order Quantity: 5K PCS
Price: Negotiable (EXW/FOB/CNF)
Packaging Details: 5K PCS per tape & reel, 100K PCS per carton.
Delivery Time: 10 work days fresh products
Payment Terms: T/T
Supply Ability: 800KK PCS per month

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package

Description
Max. Forward Current: 1A Max. Reverse Voltage: 400V
Max. Forward Voltage: 1V Max. Reverse Current: 5μF
Product Name: SMD Standard Rectifier Diode Package: SMA/SMAE/SMAF
Material: Silicon Operating Temperature: -55 ~ 150℃
High Light:

1a 400v smd diode

,

M4 Rectifier Diode

,

do 214ac sma package

General Purpose SMD Standard Rectifier Diode M4 1A 400V SMA DO-214AC


M1 THRU M7
SURFACE MOUNT GENERAL PURPOSE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere



Product Features

The plastic package carries UL Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

Built-in strain relief, ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:260℃/10 seconds at terminals

Glass passivated junction

Low forward voltage drop

RoHS Compliant


Mechanical Characteristics



Case: SMA(DO-214AC) package molded plastic body over passivated chip

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.0021 ounce, 0.059 grams


Absolute Maximum Ratings and Electrical Parameters



Type Io VRRM IFSM VF IR Package
(A) (V) (A) (V) IF(A) (uA) VR(V) Outline
M1F 1 50 30 1.1 1 5 50 SMAF
M2F 1 100 30 1.1 1 5 100 SMAF
M3F 1 200 30 1.1 1 5 200 SMAF

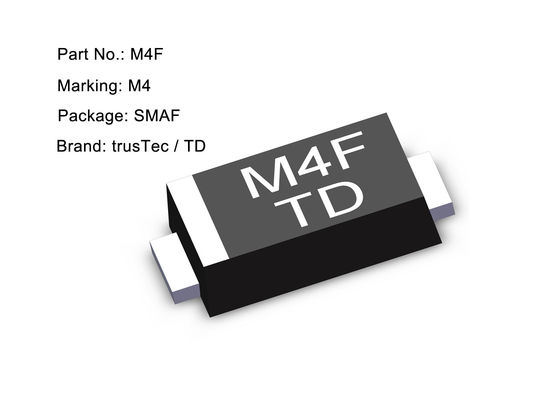

M4F 1 400 30 1.1 1 5 400 SMAF
M5F 1 600 30 1.1 1 5 600 SMAF
M6F 1 800 30 1.1 1 5 800 SMAF
M7F 1 1000 30 1.1 1 5 1000 SMAF
M1E 1 50 30 1.1 1 5 50 SMAE
M2E 1 100 30 1.1 1 5 100 SMAE
M3E 1 200 30 1.1 1 5 200 SMAE

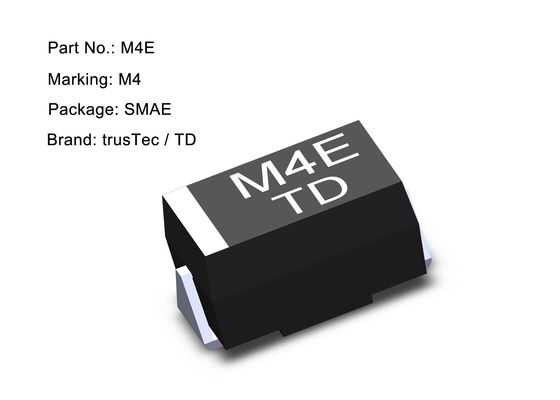

M4E 1 400 30 1.1 1 5 400 SMAE
M5E 1 600 30 1.1 1 5 600 SMAE
M6E 1 800 30 1.1 1 5 800 SMAE
M7E 1 1000 30 1.1 1 5 1000 SMAE
M1 1 50 30 1.1 1 5 50 SMA
M2 1 100 30 1.1 1 5 100 SMA
M3 1 200 30 1.1 1 5 200 SMA
M4 1 400 30 1.1 1 5 400 SMA
M5 1 600 30 1.1 1 5 600 SMA
M6 1 800 30 1.1 1 5 800 SMA
M7 1 1000 30 1.1 1 5 1000 SMA


Rating And Characteristic Curves

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 0
1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 1

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 2

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 3

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 4

1A 400V M4 SMD Rectifier Diode Sma Do 214ac Footprint Package 5



FAQ:


Q: What is your payment term?
A: T/T in advance or L/C at sight.


Q: What is your lead time?
A: Normal products 7-15 days after receiving deposit.



Q: Do you offer OEM service?
A: Yes, we have own diode brand, and we can also provide OEM service.

Q: What certifiicate do you have?
A: We have ROHS for all diodes and can provide lead-free products.
