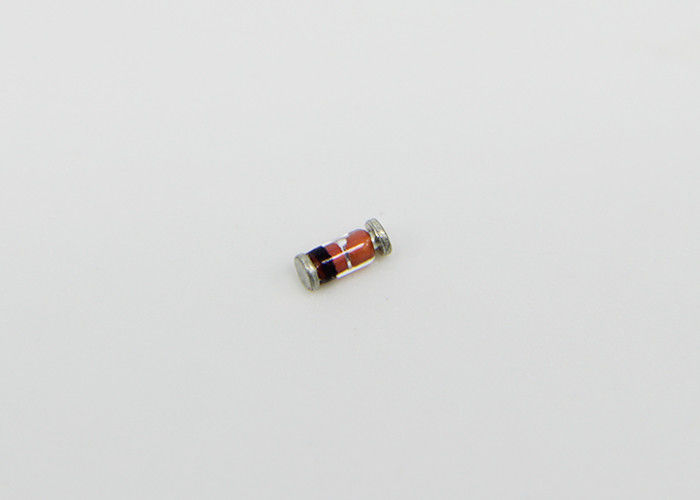

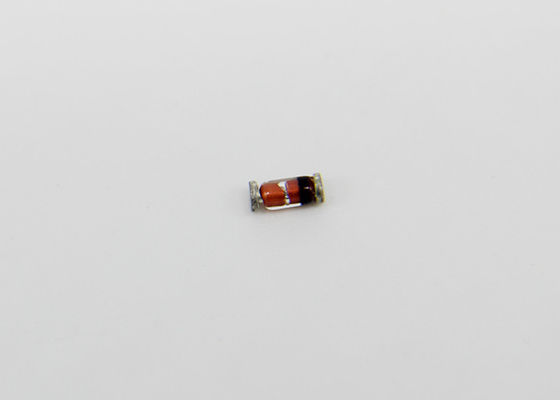

Smd Ll4148 Ultra High Speed Switching Diode Ll34 Package Glass Hermetically Sealed

Description
Type: Switching Diode Max. Reverse Voltage: 100V
Max. Forward Current: 0.15A Max. Forward Voltage: 1V
Package: MINI MELF Application: High Frequency Switch Power Supply
High Light:

ll4148 Glass Switching Diode

,

High Speed Switching Diode Ll34

,

ll34 package

LL-34 Glass Hermetically Sealed Surface Mount SMD High Speed Switching Diode LL4148

LL4148
MINI MELF SWITCHING DIODES
Reverse Voltage - 100 Volts Forward Current - 0.15 Ampere



Product outline



Smd Ll4148 Ultra High Speed Switching Diode Ll34 Package Glass Hermetically Sealed 0



MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Maximum Ratings & Thermal Characteristics

 Parameters
Symbol
Value
Unit
 Reverse Voltage
VR



75
V
 Peak Reverse Voltage
VRM
100
V
 Power Dissipation
Pd
500
mW
 Operating junction temperature
Tj
175
 Storage temperature range
Ts
-65-+200
 Working Inverse Voltage
WIV
75
V
 Average Rectified Current
IO
150
mA
 Non-repetitive Peak Forward Current
IFM
450
mA
 Peak Forward Surge Current @tp=1s; TA=25
IFSM
2.0
A




Ratings at 25 ambient temperature unless otherwise specified.
Valid provided that electrodes are kept at ambient temperature

Electrical Characteristics


 Symbols

Parameter
Test Condition
Limits
Unit
Min
Max
BV
Breakdown Voltage
IR=100uA
IR=5uA
100
75

V
IR
Reverse Leakage Current
VR=20V
VR=75V
---
---
25
5
nA
uA
VF
Forward Voltage
IF=5mA
IF=10mA
IF=100mA
0.62
---
---
0.72
1
1
V
TRR
Reverse Recovery Time
IF= 10mA, IR=1.0mA
RL=100Ω, IRR=1mA
---
4
nS
C
Capacitance
VR=0V, f=1MHZ
---
4
pF



Ratings at 25 ambient temperature unless otherwise specified

FEATURES

Fast Switching Device (TRR <4.0 nS)
Power Dissipation of 500mW
High Stability and High Reliability
Low reverse leakage

MECHANICAL DATA

Case: Glass Case
Polarity: Color band denotes cathode end
Mounting Position: Any

RATINGS AND CHARACTERISTIC CURVES
